Evinrude/Johnson Water Pump Repair Kit (5001595)

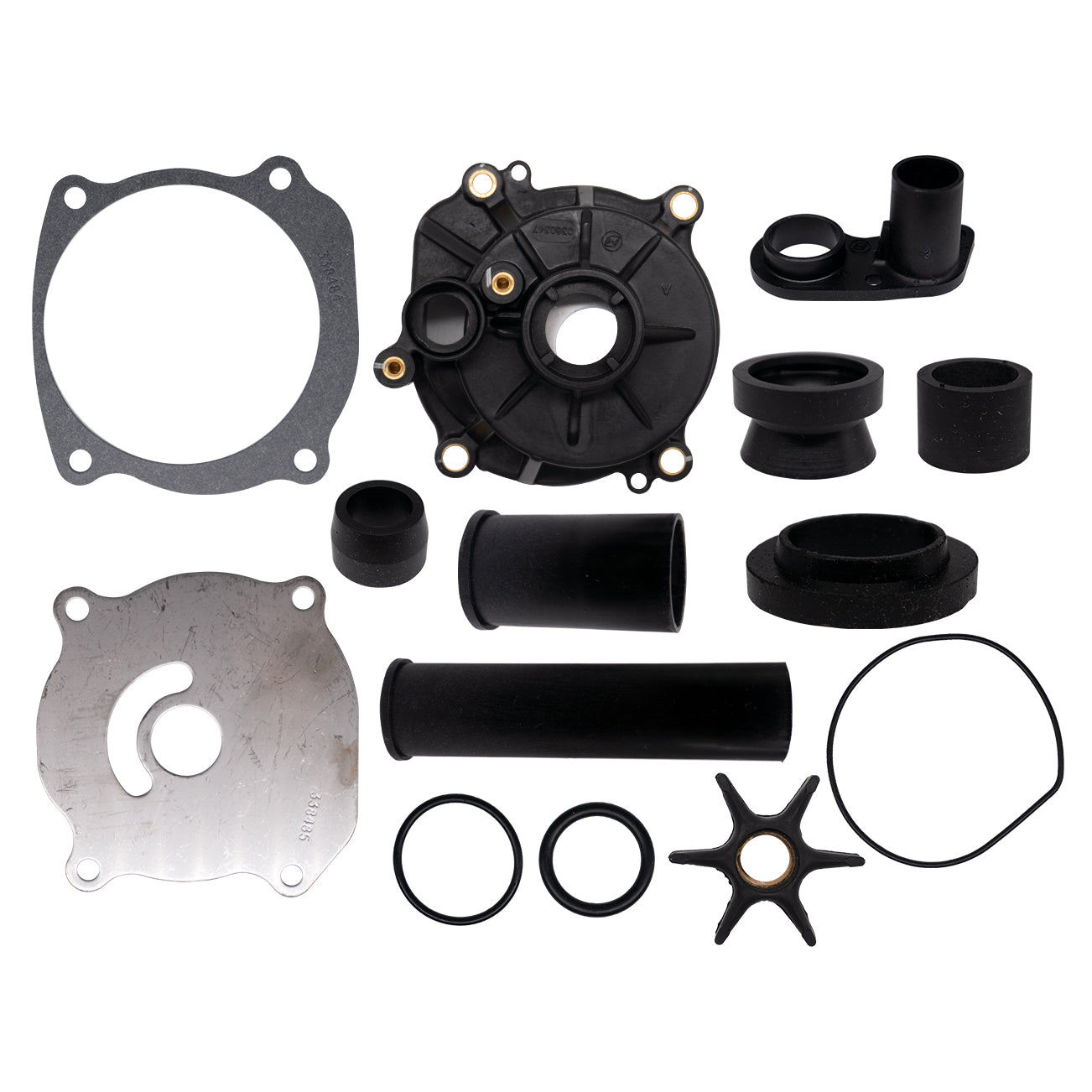

This Original Equipment Evinrude/Johnson | BRP Water Pump Kit Fits the HP/Year range shown below & contains the parts shown in the picture. This kit will provide you the parts necessary to fully replace your water pump except for the necessary sealants to seal the baseplate gasket or hold the impeller housing O-ring in place. The sealant you will need to complete this installation is listed below.
50057 - Permatex Super 300 Form-A-Gasket Sealant
HP | Years |
75 / 90 Evinrude E-TEC | 2004-AF |
105 Commercial | 1998-2001 |
115 Evinrude E-TEC | 2007-2009 |
90 / 115 SL | 1995-2006 |
90 / 115 DI | 1999-2006 |
120 / 140 25” shaft “F” suffix | 1993 |
120 / 130 / 140 25” shaft | 1994-2000 |
135 V4 25” shaft | 2001 |
150 / 175 V6 25” shaft | 1993-2006 |
150 / 175 20” shaft “SL” models | 1994-1995 |
150 / 175 20” shaft “SL” & “EL” | 1996-1998 |
150 / 175 V6 | 2000-2006 |
135 / 150 / 175 DI | 1997-2006 |
150 / 175 / 200 Evinrude E-TEC |
2007-AA |
200 / 225 25” & 30” shaft | 1993-1997 |
200 / 225 / 250 25” & 30” shaft V6 & “TL” |
1998 |
200 / 225 / 250 V6 25” shaft | 1999 |
200 / 225 / 250 V6 | 2000-2001 |
200 / 225 DI 25” shaft | 1999 |
200 / 225 / 250 DI | 2000-2005 |
200 / 225 / 250 Evinrude E-TEC 3.3 L |
2005-AA |
250 HO / 300 3.4 L “C” or “S” suffix |
2009 |
If you are unsure of the year of your engine but you have the model #, Please refer to these charts below to verify you are getting the correct part.
Model # Reference (1980-1998) Hit Back When Completed
Model # Reference (1999-2001) Hit Back When Completed
Model # Reference (2002-2012) Hit Back When Completed
Model # Reference (2013-End) Hit Back When Completed
