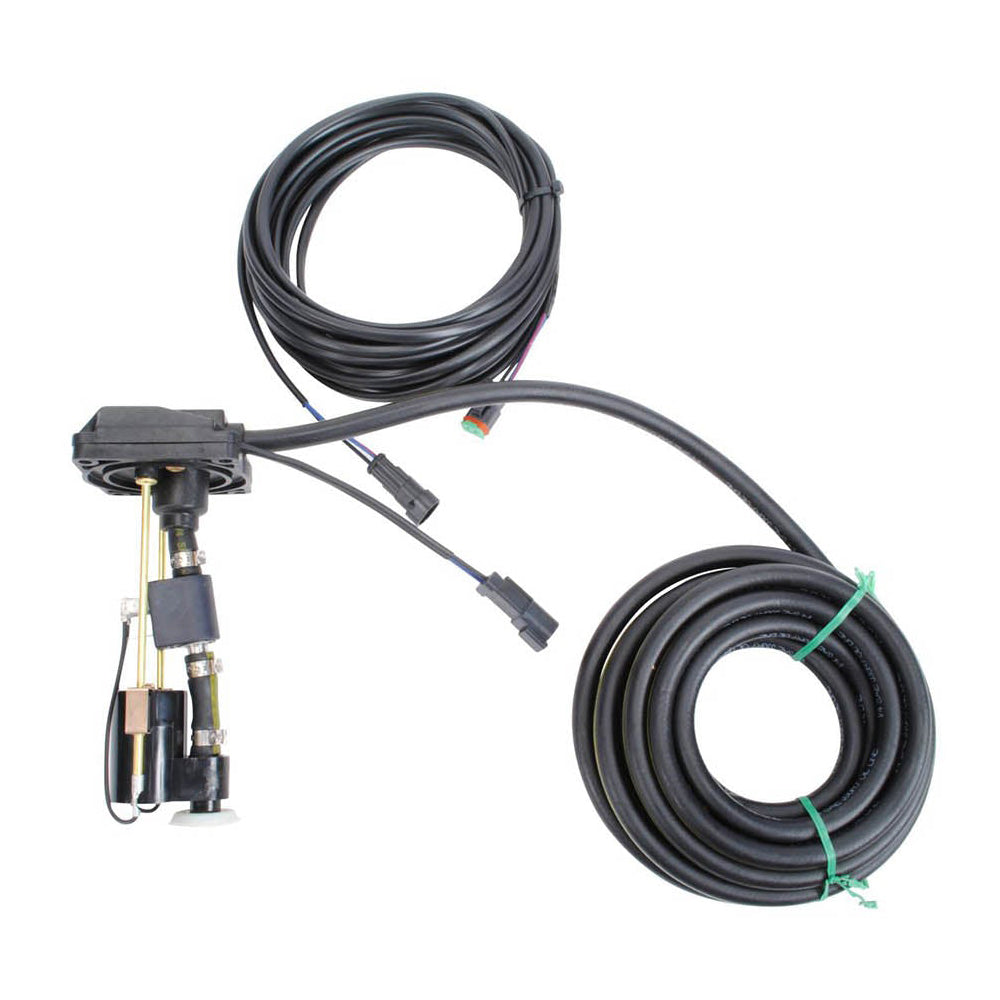

Evinrude G2 - Oil Pump Assembly - Remote Oil Tank

Installed into a boat mounted oil tank to provide extra oil capacity and extend the boat cruising range between oil fills

Automatically replenishes engine oil tank from a boat mounted oil tank with activation of the low oil warning - no user input required

Two sizes of oil pump kits are available based on oil tank depth

• 1.8 gallon maximum tank depth of: 7.0 inches (17.78 cm)
• 1.8 gallon pump assembly comes with 15' of 1/4" hose
• 3.0 gallon maximum tank depth of: 9.0 inches (22.86 cm)
• 3.0 gallon pump assembly comes with 30' of 1/4" hose
• Used in10 gallon oil tank P/N 776580 - or other custom made oil tanks with maximum depth of 9”

Can also be added to 5010830, 3.0 gallon remote oil tank to support dual engines with only one boat mounted tank.

NOTE:  The 1.8 gallon tank is NOT capable of supporting (2) pickups and the 1.8 gallon part listed below is for replacement in the 5008571-->5010829 oil tank assembly or a custom built tank that has the specifications listed above)

• Select quantity one per engine when adding to oil tanks that have no Oil Pump Assemblies at this time (Don't confuse the Oil Pickup from older Evinrude G1, Evinrude DI or Carbureted Engines as these original pickups did NOT have a pump to get the oil from the tank to the engine)  To Reach the Standard Pickup Assemblies for the Evinrude E-Tec, Direct Injected or Carbureted Engines, Use this Link
